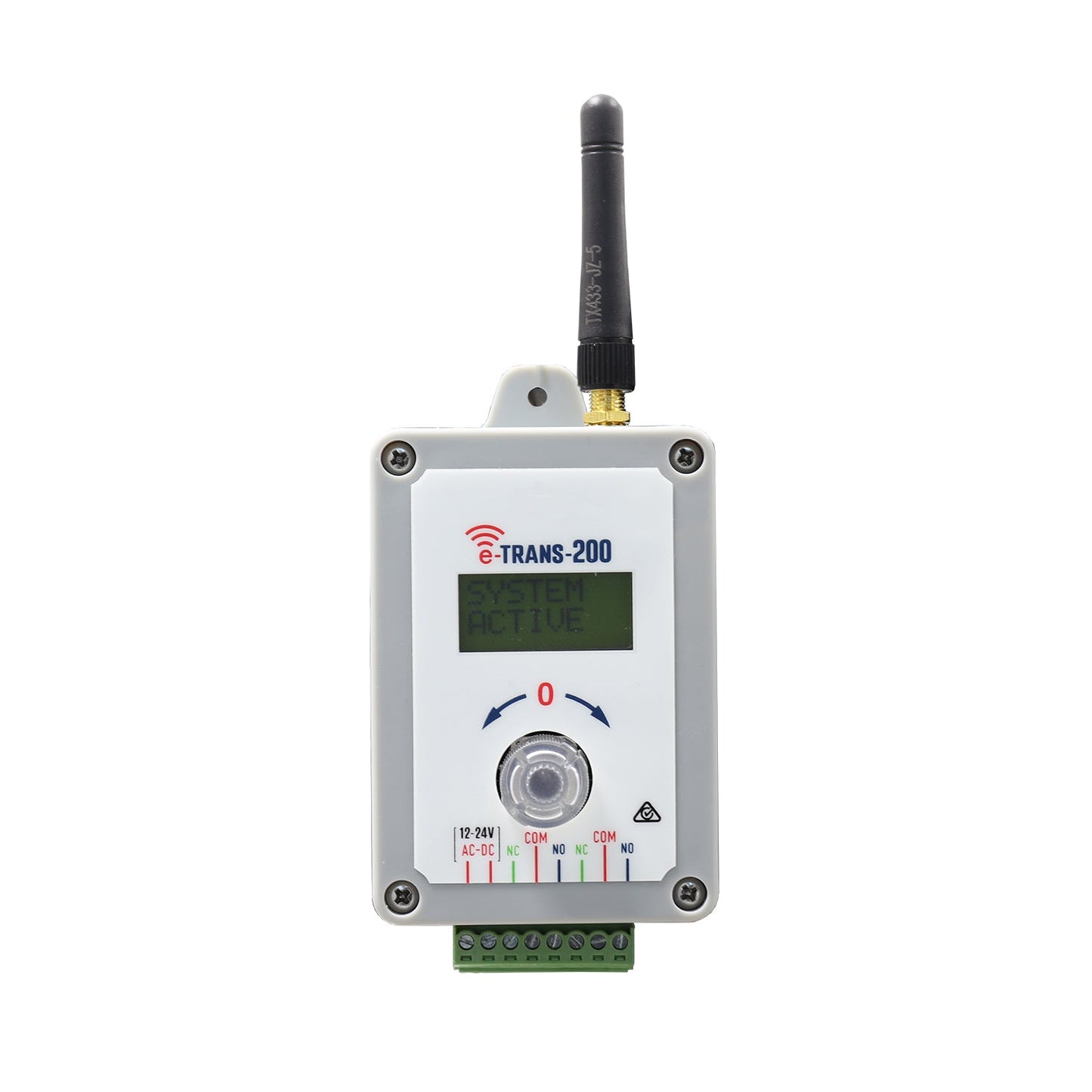

e-Trans 200 LCD Transceiver

Introducing a bidirectional wireless access control system for gate and door applications.
With a unique lock-out function, this high-end accessory is designed to manage access control for commercial multiunit complexes with up to 200 units, with functions also suitable for home systems.

Features:
Simple to use menu functions with LCD display.
High sensitivity 433 MHz -126 dBm receiver with 20dBm Transmission output.
External SMA connector to allow for the connection of different antennas.
Wide input voltage range from 10V to 36V ACDC.
2 relay outputs with the ability to set to Pulse, Hold or Latch mode.
Selectable ultra-low standby power consumption of only 4.5 m/a making it ideal for solar applications.
200 code storage with remote ID selection making it ideal for unit applications.
Ability to delete individual remote devices.
Unique lock-out feature allowing you to lock out entry buttons, e-Loops and keypads using the lock and unlock function on the e-Remote.
Ability to connect to the e-Loop to access menus and change settings.
Test mode which allows you to test relay outputs, radio signal strength and radio interference.
