e-Loop: Commercial Loop kit (PRESENCE MODE) w/ ETRANS50

e-Loop: Commercial Loop kit (PRESENCE MODE) w/ ETRANS50

Regular price £431.00 GBP
Regular price Sale price £431.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

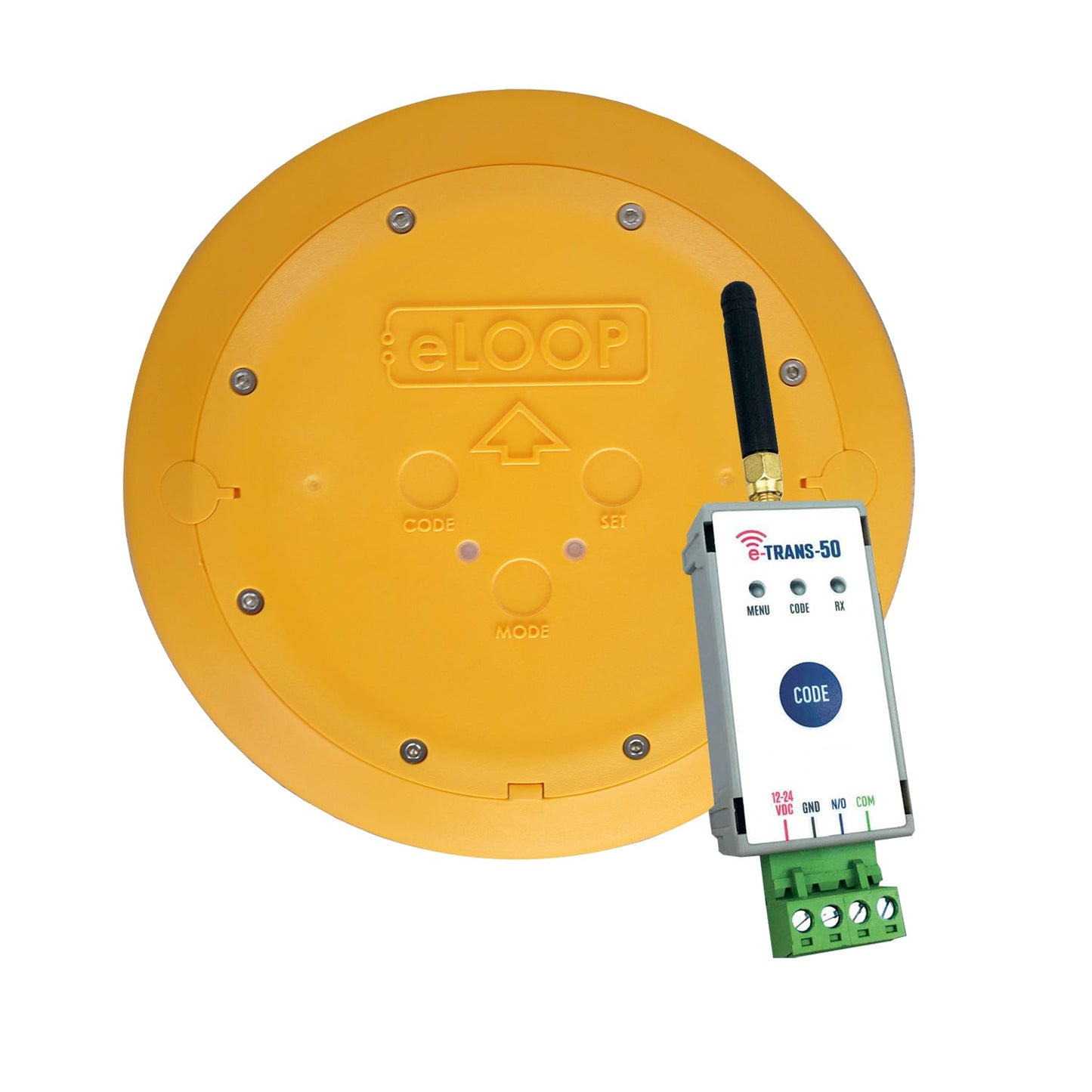

e-Loop: Commercial Loop kit (PRESENCE MODE) w/ ETRANS50

Introducing a new concept in wireless vehicle detection. The e-Loop replaces traditional wired inductive loops, saving time and money while increasing reliability.

The Radar sensors can detect vehicles that are stopped above the e-loop.
The added radar utilises two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an
oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop.

If the confirmation is missed, multiple attempts will be made to ensure A safe operation. Radar settings can be adjusted using the e-Diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, confirmation mode

Installation in 3 simple steps
1 - Code in e-Loop.
2 - Secure e-Loop to the driveway.
3 - Calibrate e-Loop and you're ready to operate in less than 15 minutes. Save many hours of installation time compared to wired loop systems.

Features:
Quick and easy installation.
Compact profile - only 26mm high x 200mm diameter.
Not affected by ground movement.
10600 mA battery giving up to 10 years battery life
High security 128 bit encryption.
Static load capacity 10000kg.
Range up to 50 meters.
Made of high impact plastic

Kit Contents:
1 x e-Loop presence mode wireless detection module.
1 x Single channel receiver (Trans-50).
2 x Dyna bolts.
